Product Profile





Product name: Fibre Optic Adaptor

Keywords: Addison Fibre Optic Adaptor

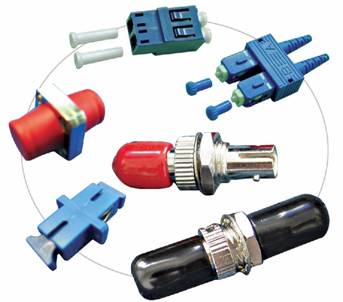

    Product Picture



Product Introduction
Fibre Optic Adaptor

Features
Low insertion Loss.
Low Back Reflection.
High Durability: 0.2dB loss after 500 cycles.
Insertion Loss: 0.15dB (Singlemode), 0.2dB (Multimode).
Compliant with JIS, IEC, Bellcore Standard.
Excellent Concentricity.
Convenience and ease of handling.
Ordering Information

AD-FA-A-B-C-D
A-ln/Out Connector Type: _
1 = FC/PC 5 = ST 9 = FC-ST 13 = SC-FC_
2 = FC/APC 6 = LC 10 = FDDI 14 = SC-CC
3 = SC/PC 7 = MTRJ 11 = DIN 15 = FDDI-ST
4 = SC/APC 8 = SC-ST 12 = ESCON 16 = ESCON-ST

B-Sleeve Type: _
1 = Single mode Zirconia Sleeve
2 = Multi-mode Zirconia Sleeve
3 = Multi-mode Phosphor Bronze Sleeve

D-Cord Type:_
1 = Simplex
2 = Duplex

E-Type:_
1=Plastic
2=Metal Square Type (FC)
3=Metal D Type (FC)
4=Metal Thread Type (ST)
