◎ Applications:
10Base-T, 100Base-T, 1000Base-T, 10GBase-T
◎ Standards:
ISO / IEC 11801, EN50173, IEC 61156-5; EN 50288-11-1
◎ Product Construction Matrix:
| U/UTP Round | U/UTP Flat | |
| Conductor | 24AWG Stranded Plain Copper | 30AWG Stranded Plain Copper |
| Insulation | HDPE | HDPE |
| Screen | Nil | Nil |
| Drain Wire | Nil | Nil |
| Jacket | PE/PVC/LSF/LSZH/LSFROH | PE/PVC/LSF/LSZH/LSFROH |
Outer nylon braid for option
◎ Working Frequency:
1-500MHz
◎ Technical Parameters:
☆ Characteristic Impedance : 100±5Ω (100MHz)
☆ Nominal Velocity of Propagation (NVP) : 66%
☆ Maximum Mutual Capacitance : 4.3nF/100m at 800Hz
☆ Maximum Capacitance Unbalance : 150pF/100m
☆ Maximum DC Resistance : 16Ω/100m
☆ Maximum Resistance Unbalance : 2%
☆ Maximum Propagation Delay Skew : 12ns/100m
☆ Minimum Bending radius : 4 x O.D. for installation; 8 x O.D. for installed
☆ Maximum Pulling load : 80N
☆ Working Temperature : -20℃ ~+ 70℃
☆ Storage Temperature : 0℃ ~ +50℃
☆ Flame Retardancy :
UL 1581 (CM Jacket); UL 1666 (CMR Jacket);
UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)
◎ Product Categories :

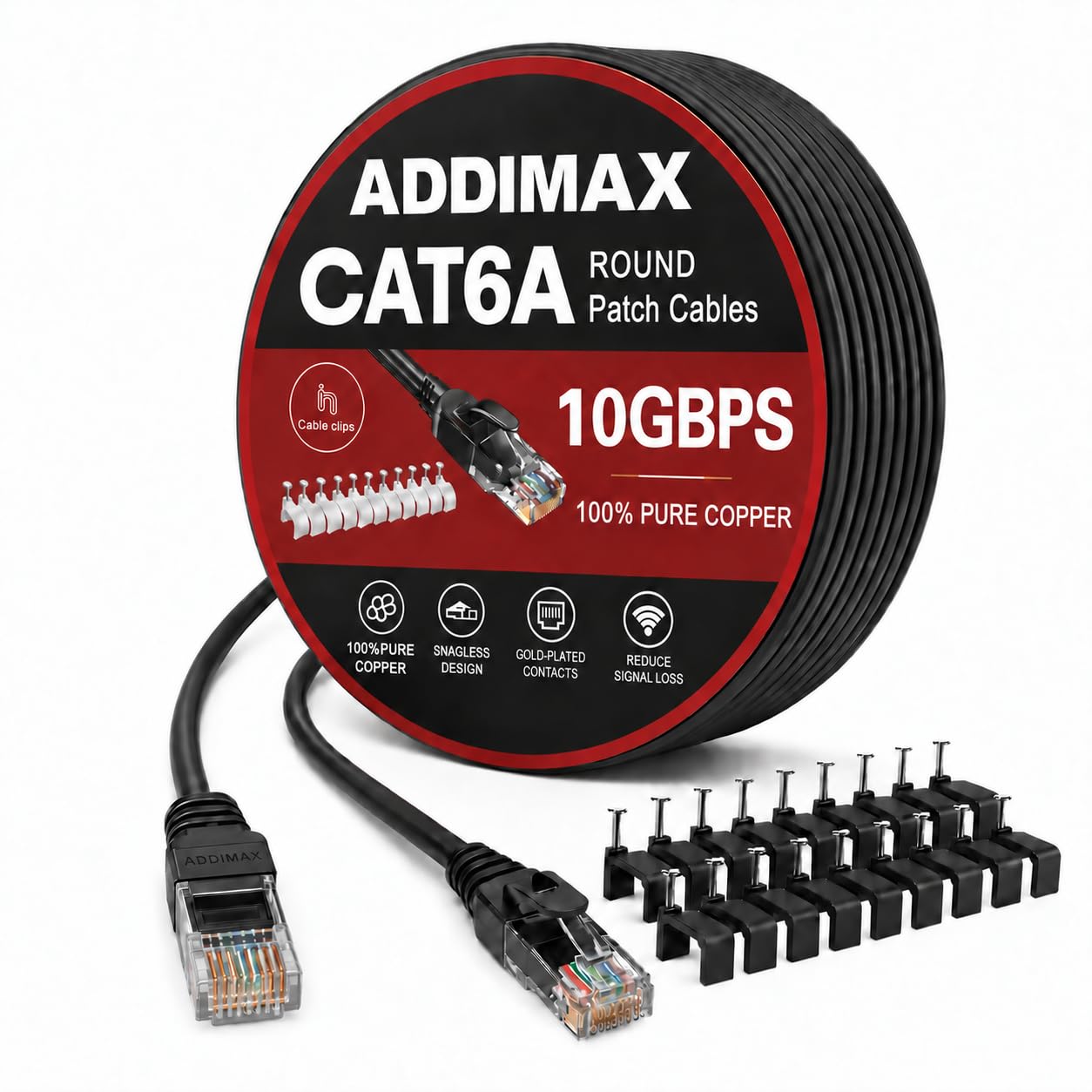

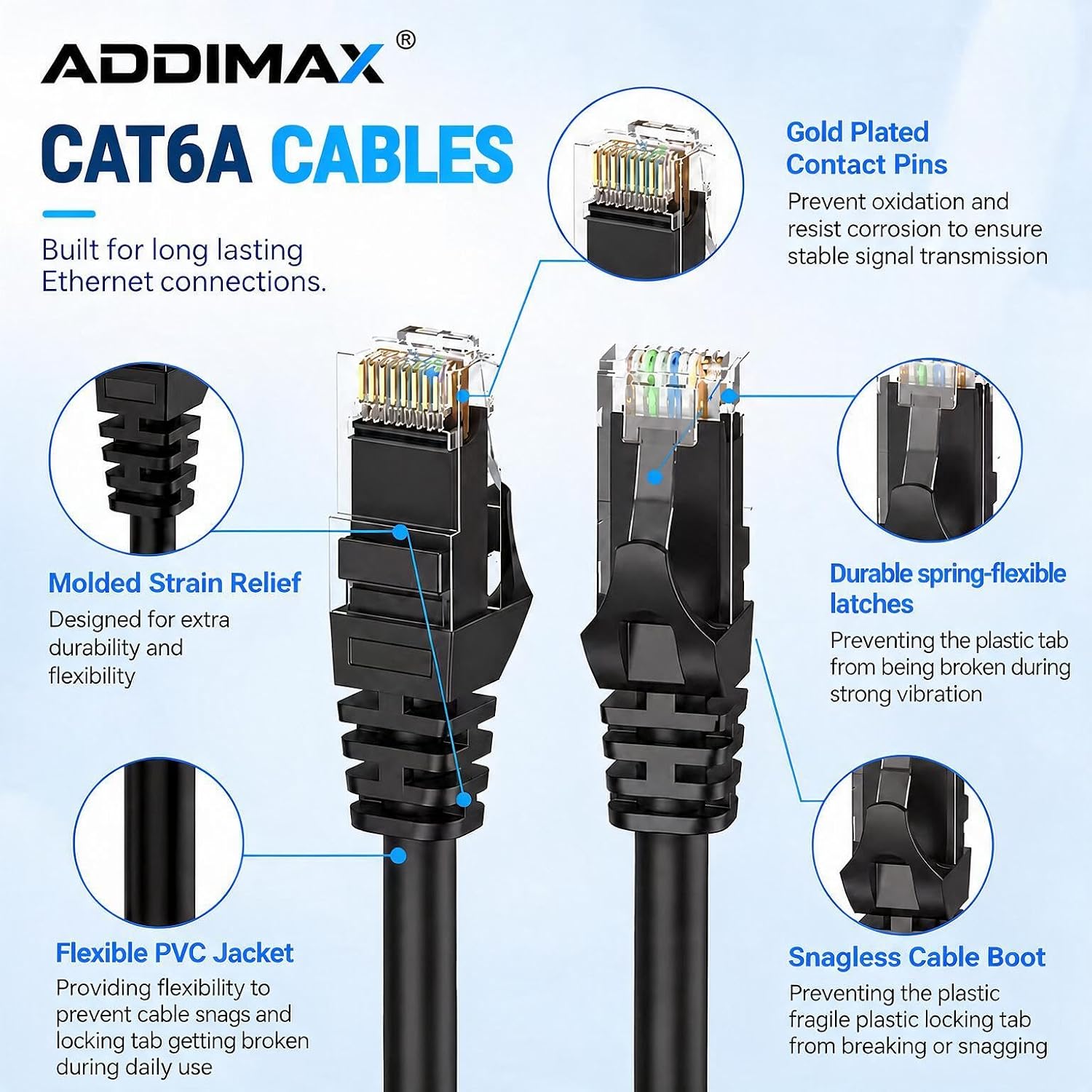

U/UTP Round
| Construction | Conductor No./Strand Dia. (mm) | Diameter Over Insulation (mm) | Pairs | Screen | Approx. O.D. (mm) | Jacket |
| U/UTP 24AWG | 7/0.20 | 1.0 | 4 | Nil | 6.0 | PVC/LSZH/LSFROH |

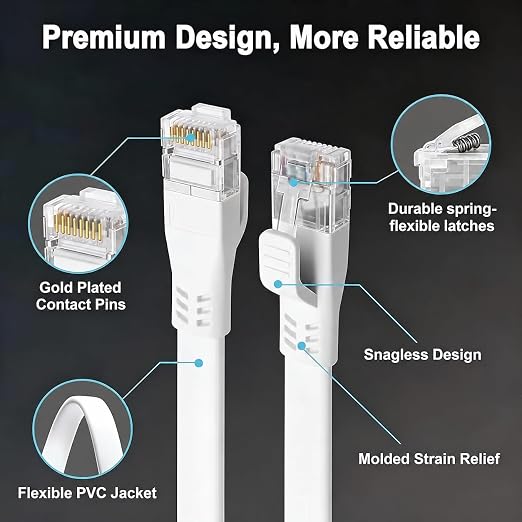

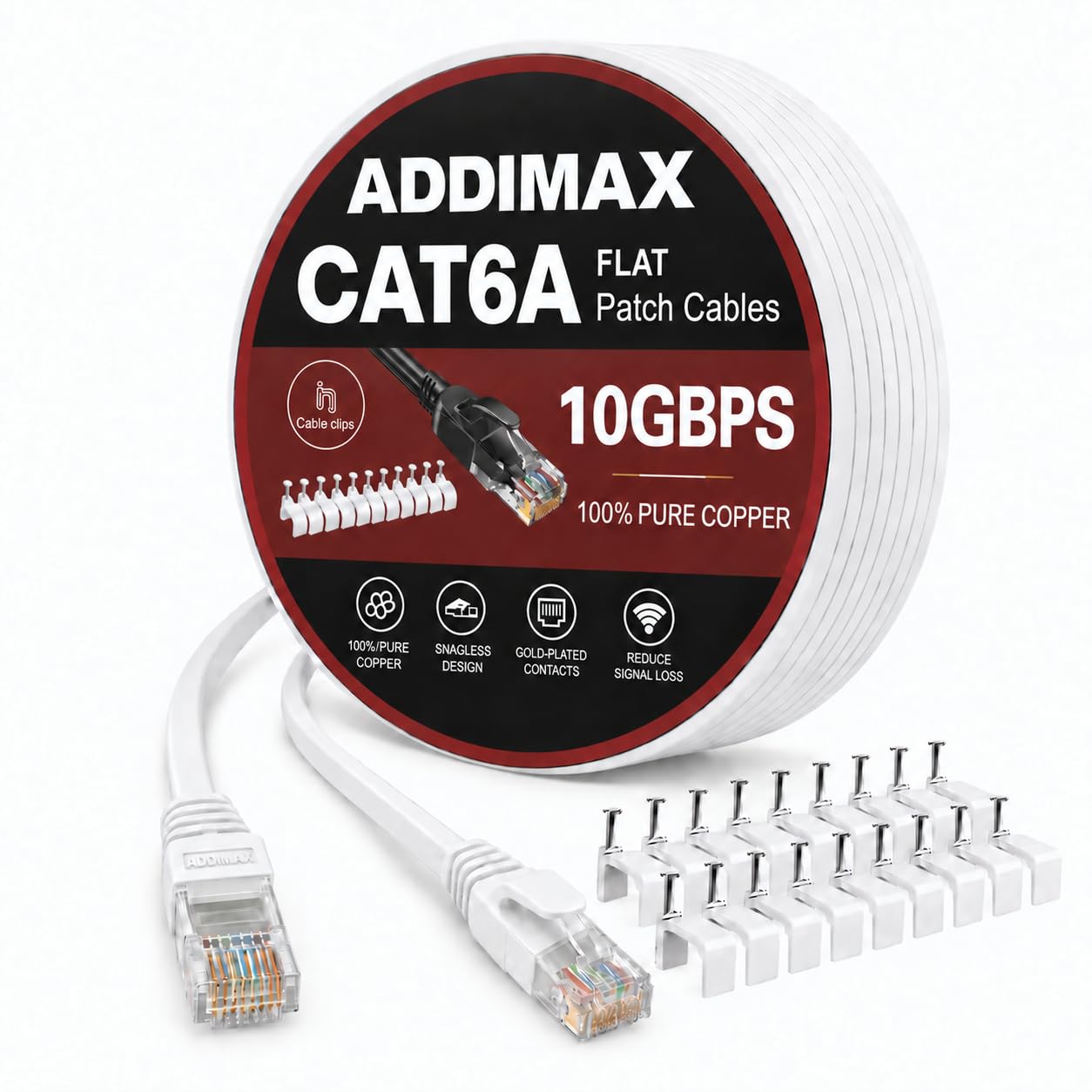

U/UTP Flat
| Construction | Conductor No./Strand Dia. (mm) | Diameter Over Insulation (mm) | Pairs | Screen | Approx. O.D. (mm) | Jacket |
| U/UTP 30AWG | 7/0.10 | 0.7 | 4 | Nil | 1.55*6.0 | PVC/LSZH/LSFROH |
◎ Product Highlights:
☆ Provide excellent NEXT and attenuation performance beyond 500 MHz.
☆ Support 10 Gigabit Ethernet application.
☆ Meet the strict flame retardancy and environmental requirements in Europe and US.
☆ Different jacket materials available for choice.
☆ Special purpose cables can be offered according to customer request.
☆ Different jacket color options available for choice.
◎ U/UTP Cat 6A Transmission Properties :
| Frequency | Attenuation | NEXT (dB) | ACRF (dB) | PS.NEXT (dB) | PS.ACRF (dB) | RL (dB) | Delay (ns/100m) | Skew (ns/100m) |
MHz |
dB |
dB/100m |
ns/100m |
ns/100m |
dB |
dB |
dB/100m |
dB/100m |
| 1 | 4.05 | 74.30 | 72.30 | 67.80 | 64.80 | 20.00 | 570.00 | 45 |
| 4 | 7.41 | 65.27 | 63.27 | 55.76 | 52.80 | 23.00 | 552.00 | |
| 8 | 10.35 | 60.75 | 58.75 | 49.74 | 46.70 | 24.50 | 546.73 | |
| 10 | 11.55 | 59.30 | 57.30 | 47.80 | 44.80 | 25.00 | 545.38 | |
| 16 | 14.60 | 56.24 | 54.24 | 43.72 | 40.70 | 25.00 | 543.00 | |
| 20 | 16.34 | 54.78 | 52.78 | 41.78 | 38.80 | 25.00 | 542.05 | |
| 25 | 18.29 | 53.30 | 51.33 | 39.84 | 36.80 | 24.30 | 541.20 | |
| 31.25 | 20.48 | 51.88 | 49.88 | 37.90 | 34.90 | 23.60 | 540.44 | |
| 62.5 | 29.23 | 47.36 | 45.36 | 31.88 | 28.90 | 21.50 | 538.55 |
|
| 100 | 37.31 | 44.30 | 42.30 | 27.80 | 24.80 | 20.10 | 537.60 | |
| 150 | 46.17 | 41.66 | 39.66 | 24.28 | 21.28 | 17.47 | 536.94 | |
| 200 | 53.77 | 39.78 | 37.78 | 21.78 | 18.80 | 18.00 | 536.55 | |
| 250 | 60.58 | 38.33 | 36.33 | 19.84 | 16.80 | 17.30 | 536.28 | |
| 300 | 66.82 | 37.14 | 35.14 | 18.26 | 15.30 | 16.80 | 536.08 | |
| 350 | 72.63 | 36.14 | 34.14 | 16.92 | 13.92 | 14.31 | 535.92 | |
| 400 | 78.10 | 35.27 | 33.27 | 15.76 | 12.80 | 15.90 | 535.80 | |
| 450 | 83.29 | 34.50 | 32.50 | 14.74 | 11.70 | 13.37 | 535.70 | |
| 500 | 88.25 | 33.82 | 31.82 | 13.82 | 10.80 | 15.20 | 535.61 |
Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
