◎ Applications:
10Base-T, 100Base-T, 1000Base-T, 10GBase-T, 40GBase-T
◎ Standards:
ISO / IEC 11801, EN50173, IEC 61156-5; IEC 61156-9
◎ Product Construction Matrix:
| U/FTP | S/FTP | |
| Conductor | 26/28/30/32AWG Stranded Plain Copper | 26/28/30/32AWG Stranded Plain Copper |
| Insulation | Foam-Skin PE | Foam-Skin PE |

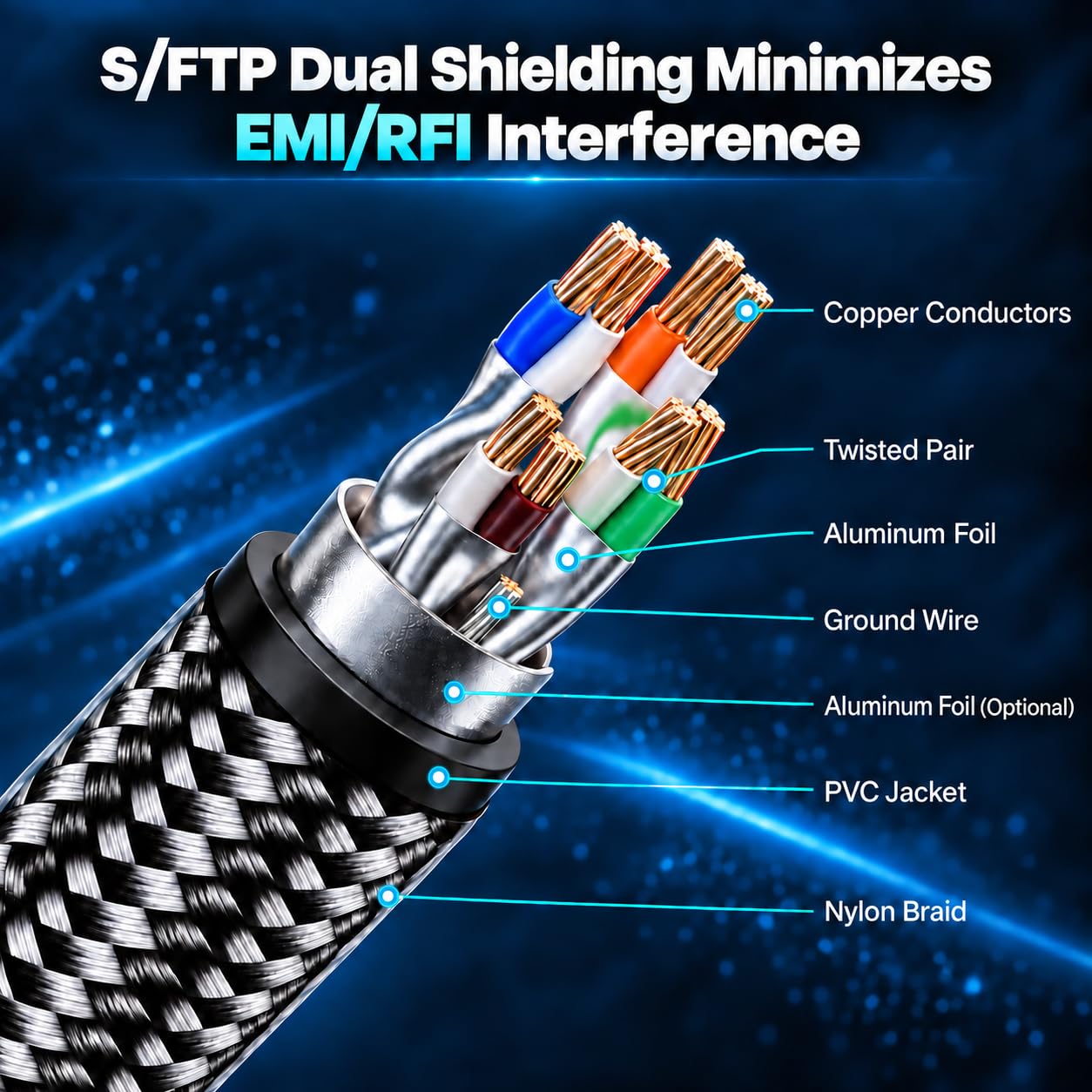

| Screen | Individual Aluminum Tape Screen | Individual Aluminum Tape Screen & Copper Wire Braid |
| Drain Wire | 7/0.1 mm | Nil |
| Jacket | PE/PVC/LSF/LSZH/LSFROH | PE/PVC/LSF/LSZH/LSFROH |
Outer nylon braid for option
◎ Working Frequency:
1-2000MHz
◎ Technical Parameters:
☆ Characteristic Impedance: 100±5Ω (100MHz)
☆ Nominal Velocity of Propagation (NVP): 73%
☆ Maximum Mutual Capacitance: 4.3nF/100m at 800Hz
☆ Maximum Capacitance Unbalance: 120pF/100m
☆ Maximum DC Resistance: 13Ω/100m
☆ Maximum Resistance Unbalance: 1%
☆ Maximum Propagation Delay Skew: 20ns/100m
☆ Minimum Bending radius: 4 x O.D. for installation; 8 x O.D. for installed
☆ Maximum Pulling load: 340N
☆ Working Temperature: -20℃ ~+ 60℃
☆ Storage Temperature: 0℃ ~ +50℃
☆ Flame Retardancy:
UL 1581 (CM Jacket); UL 1666 (CMR Jacket );
UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)
◎ Product Categories :
U/FTP Round
| Construction | Conductor No./Strand Dia. (mm) | Diameter Over Insulation (mm) | Pairs | Screen | Approx. O.D. (mm) | Jacket |
| U/FTP 26AWG | 7/0.16 | 0.88 | 4 | Individual Aluminum Tape Screen | 5.8 | PVC/LSZH/LSFROH |
| U/FTP 28AWG | 7/0.13 | 0.79 | 4 | Individual Aluminum Tape Screen | 5.4 | PVC/LSZH/LSFROH |
| U/FTP 30AWG | 7/0.10 | 0.70 | 4 | Individual Aluminum Tape Screen | 5.0 | PVC/LSZH/LSFROH |
| U/FTP 32AWG | 7/0.08 | 0.64 | 4 | Individual Aluminum Tape Screen | 4.7 | PVC/LSZH/LSFROH |
U/FTP Flat
| Construction | Conductor No./Strand Dia. (mm) | Diameter Over Insulation (mm) | Pairs | Screen | Approx. O.D. (mm) | Jacket |
| S/FTP 26AWG | 7/0.16 | 0.88 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 3.0*9.0 | PVC/LSZH/LSFROH |
| S/FTP 26AWG Nylon Braid | 7/0.16 | 0.88 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 3.5*9.6 | PVC/LSZH/LSFROH |
| S/FTP 30AWG | 7/0.10 | 0.70 | 4 | Individual Aluminum Tape Screen& Overall Copper Wire Braid | 2.4*7.4 | PVC/LSZH/LSFROH |
| S/FTP 30AWG Nylon Braid | 7/0.10 | 0.70 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 2.8*8.2 | PVC/LSZH/LSFROH |
S/FTP Round
| Construction | Conductor No./Strand Dia. (mm) | Diameter Over Insulation (mm) | Pairs | Screen | Approx. O.D. (mm) | Jacket |
| S/FTP 26AWG | 7/0.16 | 0.88 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 6.3 | PVC/LSZH/LSFROH |
| S/FTP 28AWG | 7/0.13 | 0.79 | 4 | Individual Aluminum Tape Screen& Overall Copper Wire Braid | 5.9 | PVC/LSZH/LSFROH |
| S/FTP 30AWG | 7/0.10 | 0.70 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 5.4 | PVC/LSZH/LSFROH |
| S/FTP 32AWG | 7/0.08 | 0.64 | 4 | Individual Aluminum Tape Screen & Overall Copper Wire Braid | 4.8 | PVC/LSZH/LSFROH |
◎ Product Highlights:
☆ Provide excellent NEXT and attenuation performance beyond 2000 MHz.
☆ Support 25/40 Gigabit Ethernet application.
☆ Meet the strict flame retardancy and environmental requirements in Europe and US.
☆ Different jacket materials available for choice.
☆ Special purpose cables can be offered according to customer request.
☆ Different jacket color options available for choice.
◎ S/FTP Cat 8 Transmission Properties:
| F (MHz) | Attenuation (dB/100m) | NEXT (dB) | ACR (dB/100m) | Return loss (dB) | PS-NEXT (dB) | PS-ACR (dB/100m) | ACR-F (dB/100m) | PS-ACR-F (dB/100m) |
| 1 | 1,8 | 102 | 100 | 29 | 99 | 97 | 100 | 97 |
| 4 | 3,0 | 102 | 99 | 33 | 99 | 96 | 98 | 95 |
| 10 | 4,9 | 102 | 97 | 32 | 99 | 94 | 97 | 94 |
| 16 | 6,3 | 102 | 96 | 32 | 99 | 93 | 97 | 84 |
| 20 | 7,0 | 102 | 95 | 31 | 99 | 92 | 96 | 93 |
| 31.25 | 8,9 | 100 | 91 | 31 | 97 | 88 | 95 | 92 |
| 62.50 | 12,5 | 100 | 87 | 30 | 97 | 84 | 94 | 91 |
| 100 | 16,1 | 100 | 84 | 27 | 97 | 81 | 90 | 87 |
| 155 | 18,0 | 99 | 81 | 26 | 96 | 78 | 88 | 85 |
| 200 | 19,1 | 98 | 79 | 24 | 95 | 76 | 84 | 81 |
| 250 | 24,2 | 97 | 73 | 22 | 94 | 70 | 83 | 80 |
| 300 | 28,2 | 97 | 71 | 22 | 94 | 68 | 81 | 78 |
| 600 | 48,0 | 96 | 48 | 22 | 93 | 45 | 80 | 77 |
| 1000 | 55,8 | 89 | 33 | 20 | 86 | 30 | 75 | 72 |
| 1200 | 58,6 | 86 | 27 | 20 | 83 | 24 | 73 | 70 |
| 1500 | 67,5 | 83 | 15 | 19 | 80 | 12 | 66 | 63 |
| 1600 | 68,4 | 79 | 11 | 18 | 76 | 8 | 65 | 62 |
| 2000 | 78,1 | 75 | -3 | 18 | 72 | -6 | 59 | 56 |
