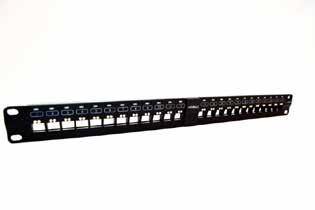

K-type Keystone Modular UTP/FTP Intelligent Patch Panel

General Description

K-type E panel is a blank panel which can accomodate any Keystone module. It has all the standard features of the S-type patch panel. K-type patch panels can be managed by IMU. It supports 24 RJ45 ports in 1U rack space. Each port is equipped with LED indicator which indicates the patching status through flashing during connection. The 9th pin and 10th pin of RJ45 is used for the transmission of patching information. At the right of panels, there are two LED with red and green light indicator that shows the panel type. At the back of panel, standard 110 IDC connection is used, supporting both T568A and T568B. There are PCB protection when doing 110 installation. A 8-pin RJ45 module is located at the center of back panel for connection with IMU.

Basic Characteristics

• 1U with 24 standard Keystone mounting ports to support various Keystone modules
• Enhanced CAT6 performance with 1Gbps transportation
• Providing tracing information with an LED indicator per port.
• Each port detects the insertion and removal of patch cord and report changes to the Server
• RJ45 LEDs indicator with red and green light
• Supporting both T568A with T568B.
• Compatible with UTP and FTP systems
• Rear punch IDC housing for faster and easier cable terminations
• Protected labelling facility
• Horizontal PCB 110 punchdown termination

Electrical Characteristics

• High speed self-scanning on all ports
• Uploading database and alarm information through the IMU to the Server
• Each port is equipped with LED flash indicator to indicate the patch cable connection
• Automatic scanning in each panel for detecting the link status.
LED is available in two modes:
• Slow flashing: Slow flashing indicates that the port needs to be connected or disconnected by the jumper. If the port is empty, it indicates that connection is required; if the port is connected, it indicates that the port needs to be disconnected)
• Fast flashing: Fast flashing is a port Alarm indication, indicating that the port is illegally connected or disconnected.
• Red and green LED indicating panel connection type,
-Red: S type, connected with Switch and
-Green: C type, connected with UTP cable.

Technical Specification

Size (H*W*D): 44.5×483×38mm
Material: Aluminum, Spray-paint, Black
Environmental Protection: Lead free solders used for soldering different parts

Part NO. Description
AD-IS-PP-24-C6-K K-type Keystone Modular 24 Port UTP Intelligent Patch Panel

Schematic Diagram
