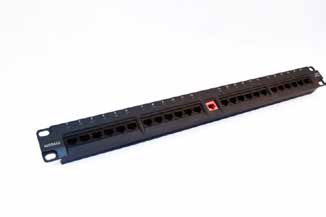

S-Type UTP Intelligent Patch Panel

General Description

All the Intelligent patch panels or E-panels can be managed by IMU. It supports 24 RJ45 ports in 1U rack space. Each port is equipped with LED indicator which shows the patching status through flashing during connection. The 9th pin and 10th pin of RJ45 is used for the transmission of patching information. At the right of the panels, there are two LED with red and green light indicator that shows the panel type. At the back of the panels, standard 110 IDC connection is used, supporting both T568A and T568B. There is PCB protection for 110 installation. A 8-pin RJ45 module is located at the center of back panel for connection with IMU.

Basic Characteristics

• 1U with 24 standard RJ45 Keystone ports connected to IMU unit in 1 rack space
• Enhanced CAT6 performance with 1Gbps transportation
• Providing tracing information with an LED indicator per port, showing red or green light
• Each port detects the insertion and removal of patch cord and report changes to the Server
• Supporting both T568A with T568B.
• Compatible with UTP systems
• Rear punch IDC housing for faster and easier cable terminations
• Protected labelling facility
• Horizontal PCB 110 punchdown termination

Electrical Characteristics

• High speed self-scanning on all ports.
• Uploading database and alarm information through the IMU to the Server.
• Each port is equipped with LED flash indicator to show the patch cable connection.
• Automatic scanning in each panel for detecting the link status.
LED is available in two modes:
• Slow flashing: Slow flashing indicates that the port needs to be connected or disconnected by the patch cord. If the port is empty, it indicates that connection is required; if the port is connected, it indicates that the port needs to be disconnected)
• Fast flashing: Fast flashing is a port alarm indication, indicating that the port is illegally connected or disconnected.
Red and green LED indicating panel connection type,
• -Red: S type, connected with Switch and
• -Green: C type, connected with UTP cable.

Technical Specification

Size (H*W*D): 44.5×483×38mm
Material: Aluminum, Spray-paint, Black
Connector, IDC
Environmental Protection: Lead free solders used for soldering different parts

Part NO. Description
AD-IS-PP-24-C6-S S-Type 24 Port UTP Cat 6 Intelligent Patch Panel

Schematic Diagram
