 Product name: Keystone Faceplates |
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
Keywords: Addison Keystone Faceplates |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 Product Picture |
|
|
|
| |
 |
|
| |
|
|
|
|
|
|
Product Introduction |
|
|
|
|
|
|
|
Keystone Faceplates |
|
|
|
|
|
|
|
|
|
|
|
Feature |
|
|
|
|
|
|
|
|
|
|
|
|
|
Work with RJ45, BNC, ST,F connectors or others.
Available in 1,2,4,6 ports.
Comes with mounting screws and with built-in identification figure or label.
Able to match with the keystone modules.Keystone jacks can be snapped in and out individually.
Modular design for future expansion.
Apply UL-94V-0 high-impact, fire-retardant ABS material.
Different color available.
Complete system for flush (in-wall), modular furniture.
Built-in structural installation, easy to maintain.
An electronic engineering plastic of a high strength and the combustion- resisting grade. |
|
|
|
|
|
|
Ordering Information |
|
|
|
|
|
|
|
|
|
|
|
|

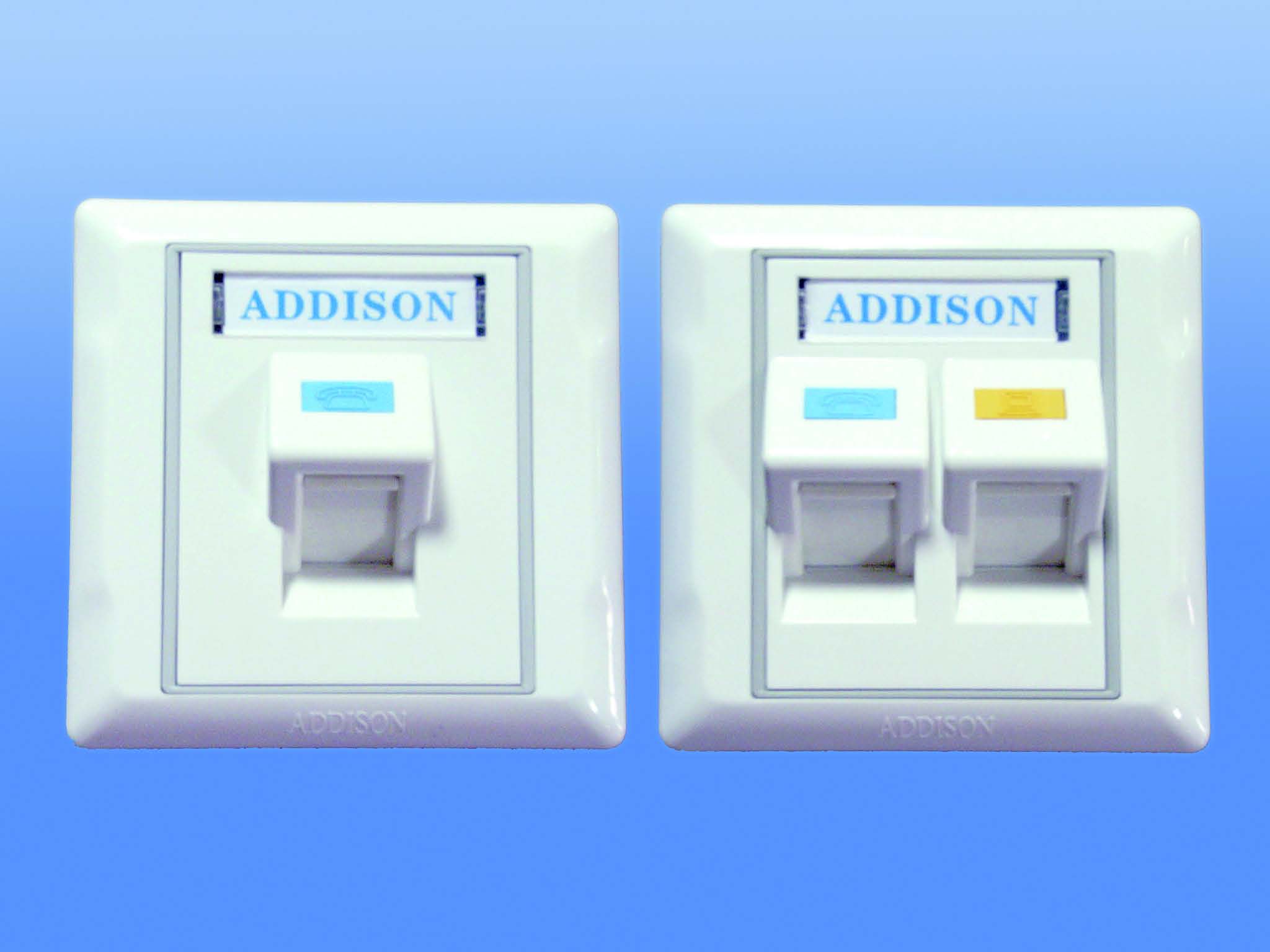

British Style Keystone Faceplate |
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Dimension |
Type |
AD-KF-UK-01-180 |
1 Port British Faceplate |
86mmx86mm |
180° |
AD-KF-UK-02-180 |
2 Port British Faceplate |
86mmx86mm |
180° |
AD-KF-UK-04-180 |
4 Port British Faceplate |
86mmx86mm |
180° |
AD-KF-UK-01-45 |
1 Port British Faceplate |
86mmx86mm |
45° |
AD-KF-UK-02-45 |
2 Port British Faceplate |
86mmx86mm |
45° |
AD-KF-UK-04-45 |
4 Port British Faceplate |
86mmx86mm |
45° |
AD-KF-UK-BB-01 |
Single Gang British Backbox |
87mmx87mm |
|
|
|
|
|
|
|
|
European Style Keystone Faceplate |
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Dimension |
Type |
AD-KF-E-01-180 |
1 Port European Faceplate |
80mmx80mm |
180° |
AD-KF-E-02 -180 |
2 Port European Faceplate |
80mmx80mm |
180° |
AD-KF-E-BB-01 |
Single Gang European Backbox |
81mmx81mm |
|
|
|
|
|
|
|
|
Horizontal Keystone Faceplate |
|
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Dimension |
Type |
AD-KF-H-01-180 |
1 Port Horizontal Faceplate |
70mmx114mm |
180° |
AD-KF-H-02-180 |
2 Port Horizontal Faceplate |
70mmx114mm |
180° |
AD-KF-H-03-180 |
3 Port Horizontal Faceplate |
70mmx114mm |
180° |
AD-HF-BB-01 |
Single Gang Horizontal Backbox |
72mmx115mm |
|
|
|
|
|
USA style Keystone Faceplate |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Dimension |
Type |
AD-KF-US-01-180 |
1 Port USA keystone Faceplate |
114mmx70mm |
180° |
AD-KF-US-02-180 |
2 Port USA keystone Faceplate |
114mmx70mm |
180° |
AD-KF-US-04-180 |
4 Port USA keystone Faceplate |
114mmx70mm |
180° |
AD-KF-US-06-180 |
6 Port USA keystone Faceplate |
114mmx70mm |
180° |
AD-KF-US-01-45 |
1 Port USA keystone Faceplatew |
114mmx70mm |
45° |
AD-KF-US-02-45 |
2 Port USA keystone Faceplate |
114mmx70mm |
45° |
AD-KF-US-04-45 |
4 Port USA keystone Faceplate |
114mmx70mm |
45° |
AD-KF-US-06-45 |
6 Port USA keystone Faceplate |
114mmx70mm |
45° |
AD-KF-US-BB-01 |
Single Gang USA Backbox |
115mmx72mm |
|
|
|
|
|
|
Color Code (XX): WH-White IV-Ivory |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
