Product Profile


    cat6 shieled patch cord
Product name: Patch Cords

Keywords: Patch Cords ,cat5e


    Product Picture

  cat5e patch cord cat6 patch cord cat5e 110 patch cord

Product Introduction

Basic Features :
☆ Using 24/26AWG 4 pairs UTP/FTP/STP patch cable.
☆ Cord Length: 1m to 15m for selection.
☆ Outer Jacket: PVC, FRPVC, LSZH.
☆ Two ends terminated with 50μ" gold plated RJ 45 plug by moulding in one motion.
☆ Pin assignment for RJ 45 plug follows the T568B wiring scheme.
☆ Being UL approved, the cords are compliant with TIA/EIA-568B, ISO IEC 11801 Cat 5e/Cat 6 Standard.

☆ Wide range of cord colors for selection for meeting different color coding

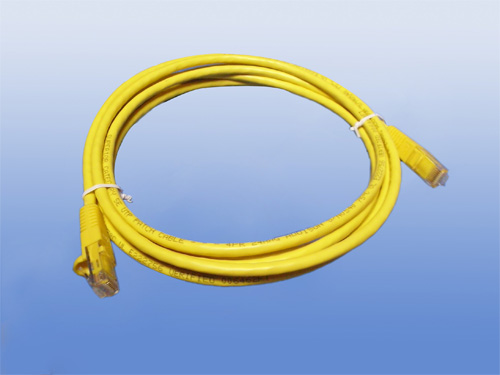

Cat 5e UTP Patch Cord

 requirement, in compliant with EIA/TIA-606 standard. cord colors: Yellow, Blue, Green, White, Orange, Purple, Red, Grey.
☆ Used for interconnection between patch panels and data jacks.
Technical Parameters:
☆ Compatible with RJ45 plug
☆ Impedance: 100Ω±15%
☆ Diameter over conductor: 0.18mm
☆ Overall Diameter: 5.1mm (UTP Cat5e); 5.4mm (FTP Cat5e);
6.0mm (UTP Cat6); 6.5mm (FTP/STP Cat6)
☆ Number of Pairs: 4 prs
☆ Minimum Insertion Cycle: 1000 cycles

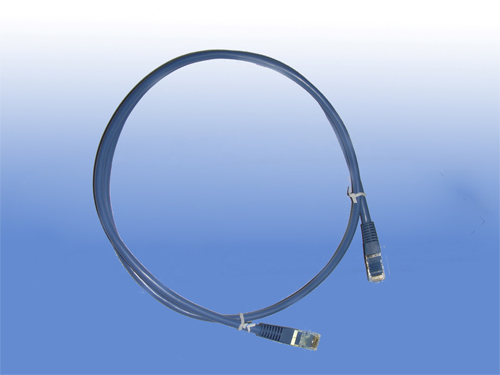

Cat 5e FTP Patch Cord













☆ Minimum Plug Force: 30 lb
☆ Operating Temperature: -20℃ ~ +60℃
Product Highlights:
☆ Every patch cords are strictly tested for NEXT and return loss, complying to TIA/EIA-568 & ISO/IEC 11801 component standard. To ensure component compliancy, each patch cord will be individually tested with Fluke DSP-PCI patch cord adaptor for component testing.
☆ Contacts feature gold plating, complying with FCC part 68 F to achieve
longer product life cycle.
☆ Twists are maintained within 1/2” (12.7mm) for superior NEXT performance. 37mm long boots are used to ensure the best bending radius and which are critical for achieving the best return loss performance.

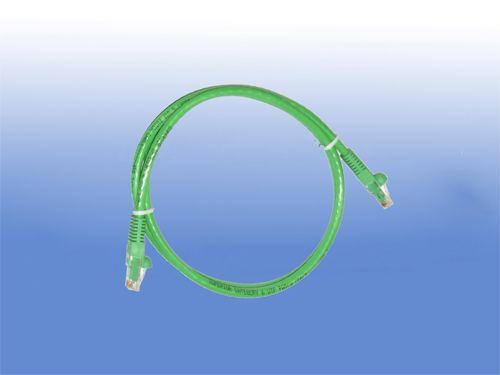

Cat 6 UTP Patch Cord











☆ Available in various boot colors for selection.
☆ Durable plug provide good resistance to corrosion, extreme temperature and air contaminants.
☆ Innovative 360 degree crimp can provide excellent strain relief and prevent the cord from pair deforming.
☆ Cat 6 patch cords are backward compatible with Cat5e and lower class products.
☆ Using stranded patch cable for better flexibility in accordance with EIA/TIA-606 standard.
☆ The RJ45 plugs and the cables are terminated with PVC injection moulding to prevent the plug and the plating parts to get oxidized.

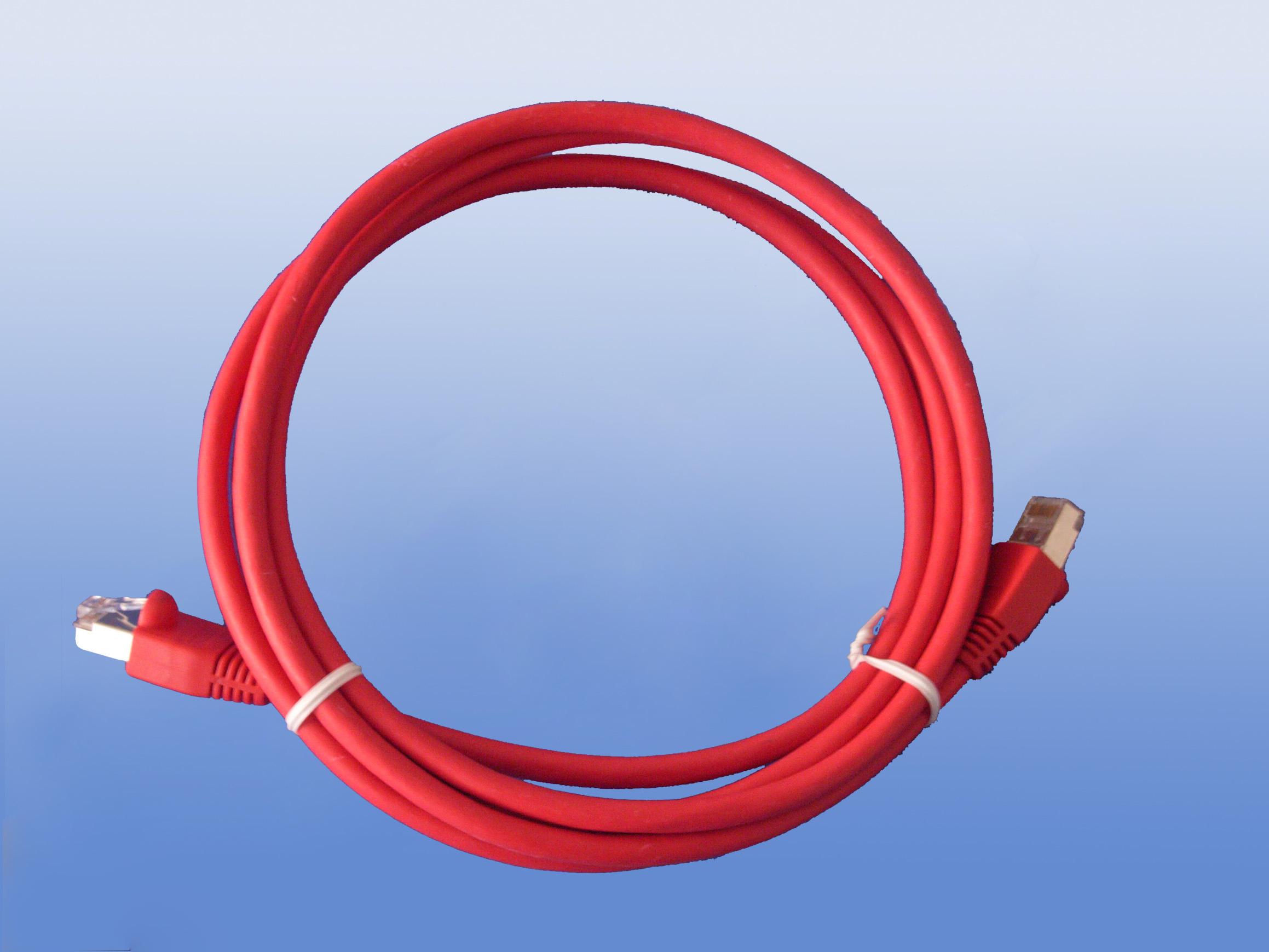

Cat 6 FTP Patch Cord

◎ Ordering Information:

Part No.

Description

AD-CAT5EUTP4PM001CM26A-XX

CAT 5e UTP, 1 meter, ( 26 AWG Stranded )

AD-CAT5EUTP4PM003CM26A-XX

CAT 5e UTP, 3 meter, ( 26 AWG Stranded )

AD-CAT5EUTP4PM005CM26A-XX

CAT 5e UTP, 5 meter, ( 26 AWG Stranded )

AD-CAT5EFTP4PM001CM26A-XX

CAT 5e FTP, 1 meter, ( 26 AWG Stranded )

AD-CAT5EFTP4PM003CM26A-XX

CAT 5e FTP, 3 meter, ( 26 AWG Stranded )

AD-CAT5EFTP4PM005CM26A-XX

CAT 5e FTP, 5 meter, ( 26 AWG Stranded )

AD-CAT6UTP4PM001CM26A-XX

CAT 6 UTP, 1 meter, ( 26 AWG Stranded )

AD-CAT6UTP4PM003CM26A-XX

CAT 6 UTP, 3 meter, ( 26 AWG Stranded )

AD-CAT6UTP4PM005CM26A-XX

CAT 6 UTP, 5 meter, ( 26 AWG Stranded )

AD-CAT6AUTP4PM001CM24A-XX

CAT 6A UTP, 1 meter, ( 24 AWG Stranded )

AD-CAT6AUTP4PM003CM24A-XX

CAT 6A UTP, 3 meter, ( 24 AWG Stranded )

AD-CAT6AUTP4PM005CM24A-XX

CAT 6A UTP, 5 meter, ( 24 AWG Stranded )

AD-CAT6FTP4PM001CM26A-XX

CAT 6 FTP, 1 meter, ( 26 AWG Stranded )

AD-CAT6FTP4PM003CM26A-XX

CAT 6 FTP, 3 meter, ( 26 AWG Stranded )

AD-CAT6FTP4PM005CM26A-XX

CAT 6 FTP, 5 meter, ( 26 AWG Stranded )

AD-CAT6ASTP4PM001CM27A-XX

CAT 6A FTP, 1 meter, ( 27 AWG Stranded )

AD-CAT6ASTP4PM003CM27A-XX

CAT 6A FTP, 3 meter, ( 27 AWG Stranded )

AD-CAT6ASTP4PM005CM27A-XX

CAT 6A FTP, 5 meter, ( 27 AWG Stranded )

P.S.: Patch cord of        24, 26, 27AWG are available according to customer’s requirements.
◎ Ordering Options:

AD-AAAAA-BBB-CCC-DEEE-FFF-GG-XX
**AAAAA**: Cable Standard
CAT3, CAT5, CAT5e, CAT6, CAT6A
**BBB**: Cable Type Family
UTP = Unscreened Cable; FTP = Overall Screened Cable; STP= Individual Screen Cable
**CCC**: No of Cable Pairs
4P= 4 Pairs; 25P= 25 Pairs
**DEEE**: Length
F003=3 Feet; F005 =5 Feet; F007 = 7 Feet;
M001=1 Meter; M002 =2 Meter; M003 = 3 Meter
*FFF**: Fire Performance Rating
CM=Normal PVC, CM grade; CMR= FRPVC, CMR Riser Grade; CMP=FEP, CMP Plenum Grade; FR=FRPVC, to IEC 332-1; LH=LSZH grade, to IEC 60754-1 & IEC 61034 P1/2
**GG**: Cable Gauge Size
24A = 24 AWG; 26A = 26 AWG
**XX**: Jacket Color
01=Yellow, 02=Blue, 03=Green, 04=White, 05=Orange, 06=Purple, 07=Red, 08=Grey

  Cat5E/6 Patch Cords
  Cat5e 110 Patch Cords
  Color Coded Boot and Modular Plugs
