 Product name: Color Coded Boot and Modular Plugs |
|
|
|
|
|
|
 |
|
|
|
|
|
|
Keywords: Addison Color Coded Boot and Modular Plugs |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |

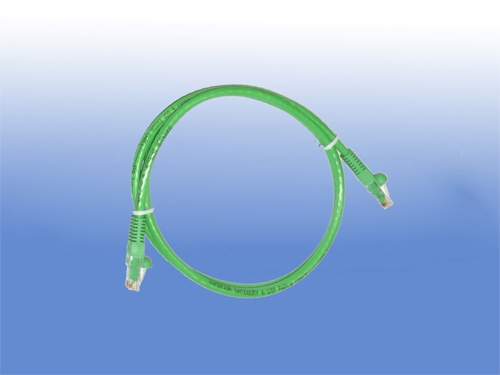

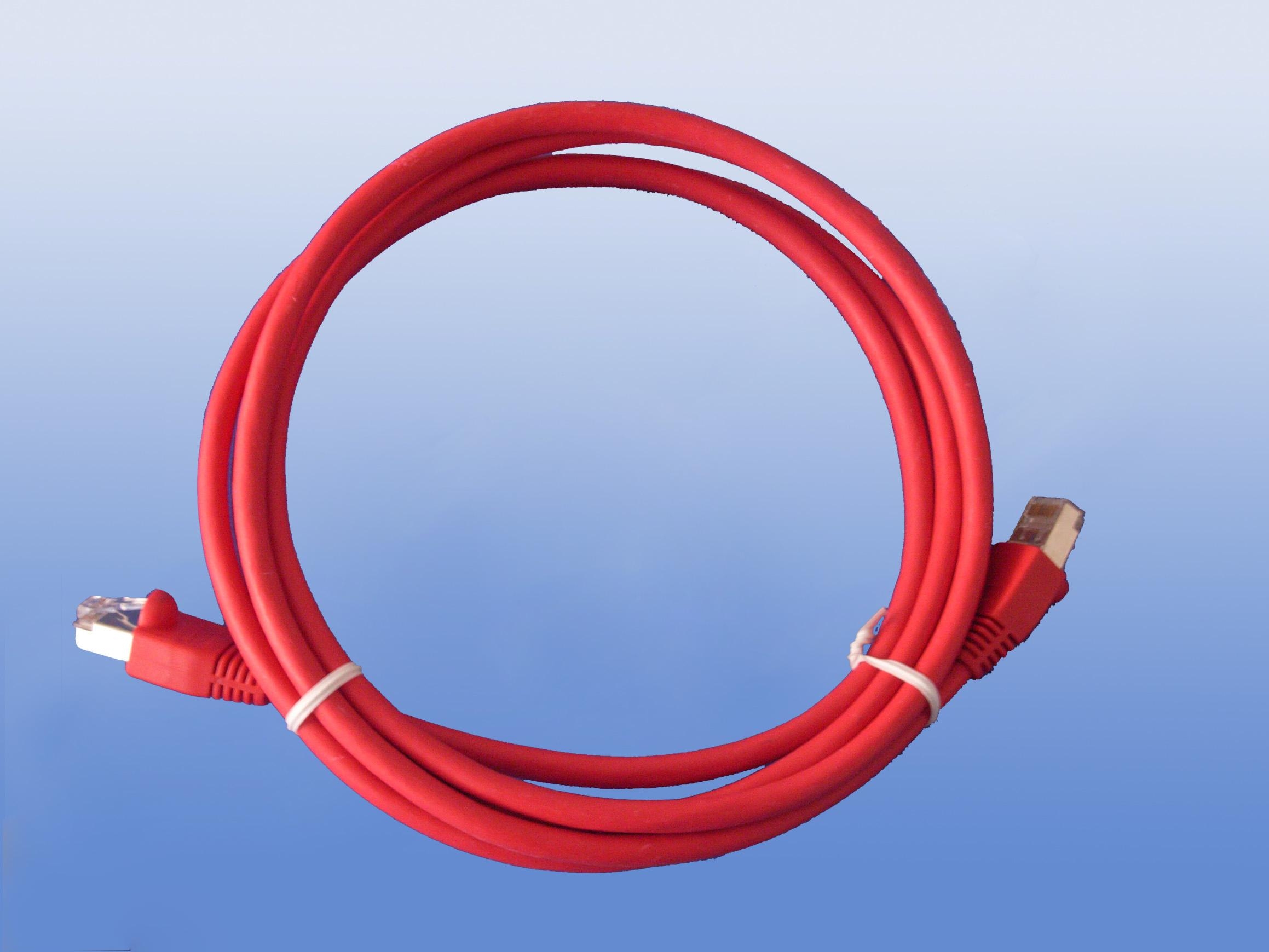

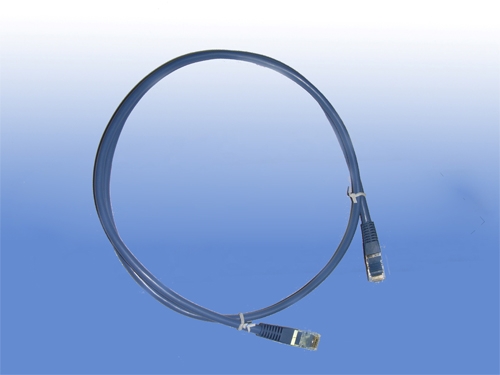

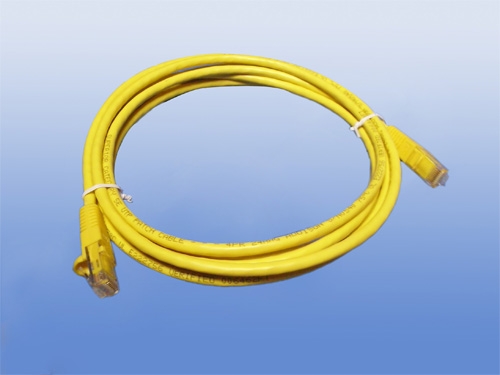

 Product Picture |
|
|
|
| |
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Introduction |
|
|
|
|
|
|
|
Color Coded Boots |
|
|
|
|
|
|
|
|
|
|
|
|
|
Features for Color Coded Boots |
|
|
|
|
|
|
|
|
|
|
|
|
Two-piece version allows removing from the existing terminated or molded.
patch cords a any time needed.
Flexible strain relief could be adjusted to fit round cable with diameters
ranging from5.5 to 6.5mm.
Fits over RJ-45 connectors (standard body).
Boots could be offered with different color for matching with color of the
patch cords and patch panel system.
work with most Cat 5, Cat 5e, and Cat 6 cables.
work with all standardized RJ-45 and RJ-48 modular plugs.
provide you with professional looking results. |
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Ordering Information for Color Coded Boots |
|
|
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Cable O/D |
AD-SR1-50-XX |
One Piece Strain Relief for RJ45 plug |
5.0mm |
AD-SR1-55-XX |
One Piece Strain Relief for RJ45 plug |
5.5mm |
AD-SR1-60-XX |
One Piece Strain Relief for RJ45 plug |
6.0mm |
AD-SR1-65-XX |
One Piece Strain Relief for RJ45 plug |
6.5mm |
AD-SR1-F-XX |
One Piece Strain Relief |
Flat cable |
AD-SR2-60-XX |
Two Piece Strain Relief for RJ45 plug |
6.0mm |
AD-SR2S-60-XX |
Snap On Strain Relief for RJ45 plug |
6.0mm |
|
|
|
|
XX is the color code: BK= Black RD= Red GN= Green YL= Yellow BL= Blue color
WH= White OR= Orange GY= Gray IV= Ivory |
|
|
|
|
|
|
|
|
|
|
|
Modular Plug |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features for Modular Plug: |
|
|
|
|
|
|
|
|
|
|
|
|
Increased flexibility: Fit with stranded or solid cable.
Eight- conductor modular plug works with round cable.
Use with standard termination tools.
Load bar eases wire insertion while maintaining 1/2" twist requirements.
Clear plastic cover keeps the conductor colors/positions visible for termination.
Featuring tangle-free latch (3-prong) .
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
Physical Specifications for Modular Plug |
|
|
|
|
|
|
|
|
|
|
|
Beryllium copper contact: 50 micro inch (µ") gold plated pins over 100 micro inch (µ")
nickel layer.
Insertion life cycle: 1,000 cycles (minimum). |
|
|
|
|
|
|
Electrical Specifications for Modular Plug |
|
|
|
|
|
|
|
|
|
|
|
Insulation Resistance: 500M.
Dielectric Withstand Voltage: 500V AC. |
|
|
|
|
 |
|
|
Ordering information for Modular Plug |
|
|
|
|
|
|
|
|
|
Part No. |
Description |
AD-RJ45-CAT5EUTP-PLUG |
Cat5e,Unshielded,RJ-45 plug |
AD-RJ45-CAT5EFTP-PLUG |
Cat5e,Shielded,RJ-45 plug |
AD-RJ45-CAT6UTP-PLUG |
Cat6,Unshielded,RJ-45 plug |
AD-RJ45-CAT6FTP-PLUG |
Cat6,Shielded,RJ-45 plug |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
Assignments for Modular Plug |
|
|
|
|
|
|
|
|
Identification Color Code T568A_Pin Assignment T568B_Pin Assignment |
|
|
|
|
|
|
|
Identification |
T568A_Pin |
T568B_Pin |
Color Code |
Pair 1 |
5 |
5 |
White/Blue |
4 |
4 |
Blue |
Pair 2 |
3 |
1 |
White/Orange |
6 |
2 |
Orange |
Pair 3 |
1 |
3 |
White/Green |
2 |
6 |
Green |
Pair 4 |
7 |
7 |
White/Brown |
8 |
8 |
Brown |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] [2] [3] |
|
|
|
|
