 Product name:Cat5e & Cat6 Patch Panels |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Keywords: |
|
|
|
|
|
|
|
|
|
Addison unshielded cat5e patch panel, shielded cat5e patch panel,unshielded cat6 patch panels |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 Product Picture |
|
|
|
| |
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Introduction |
|
|
|
|
|
|
|

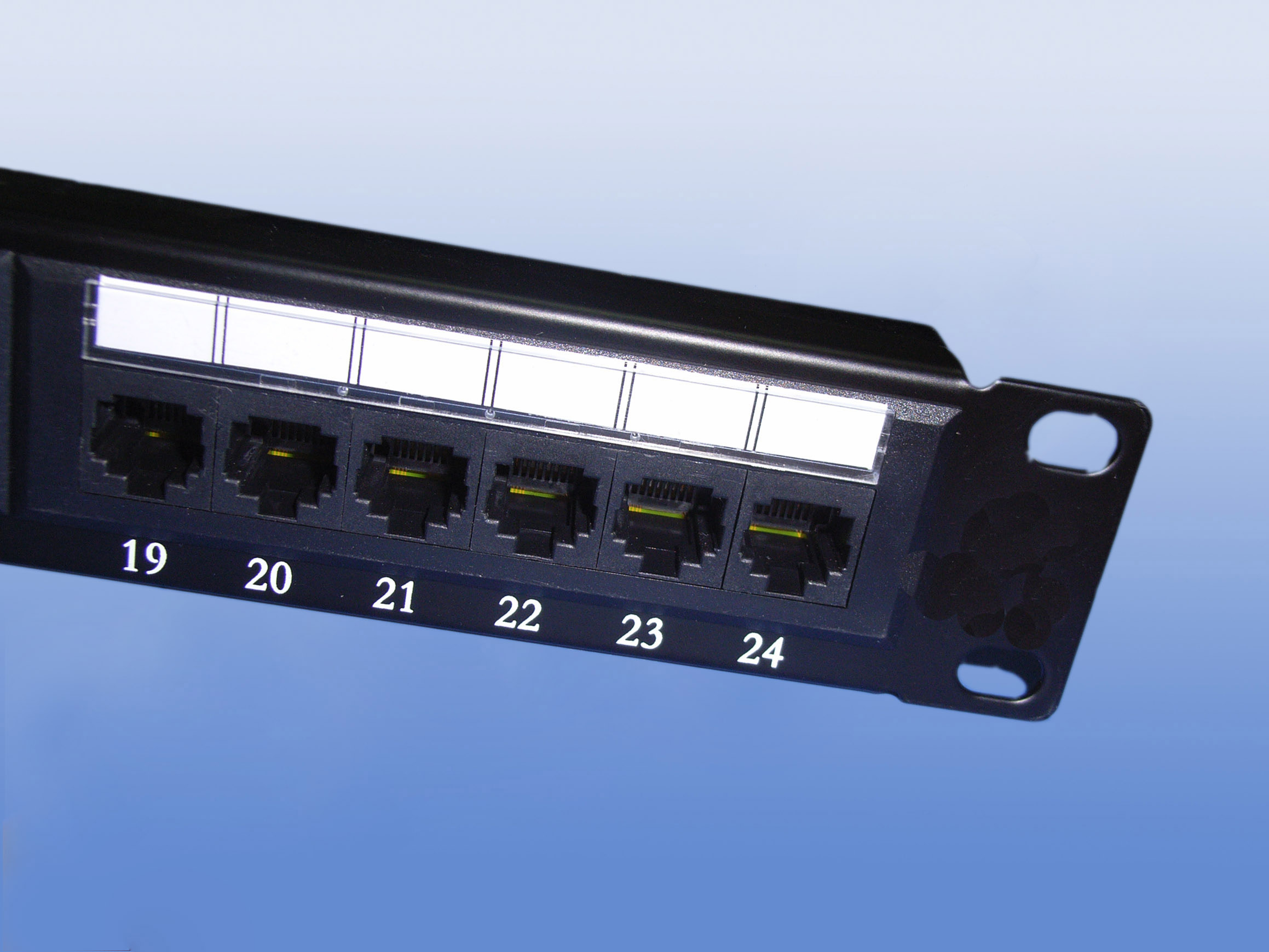

CAT5E Patch Panels, Unshielded & Shielded Version

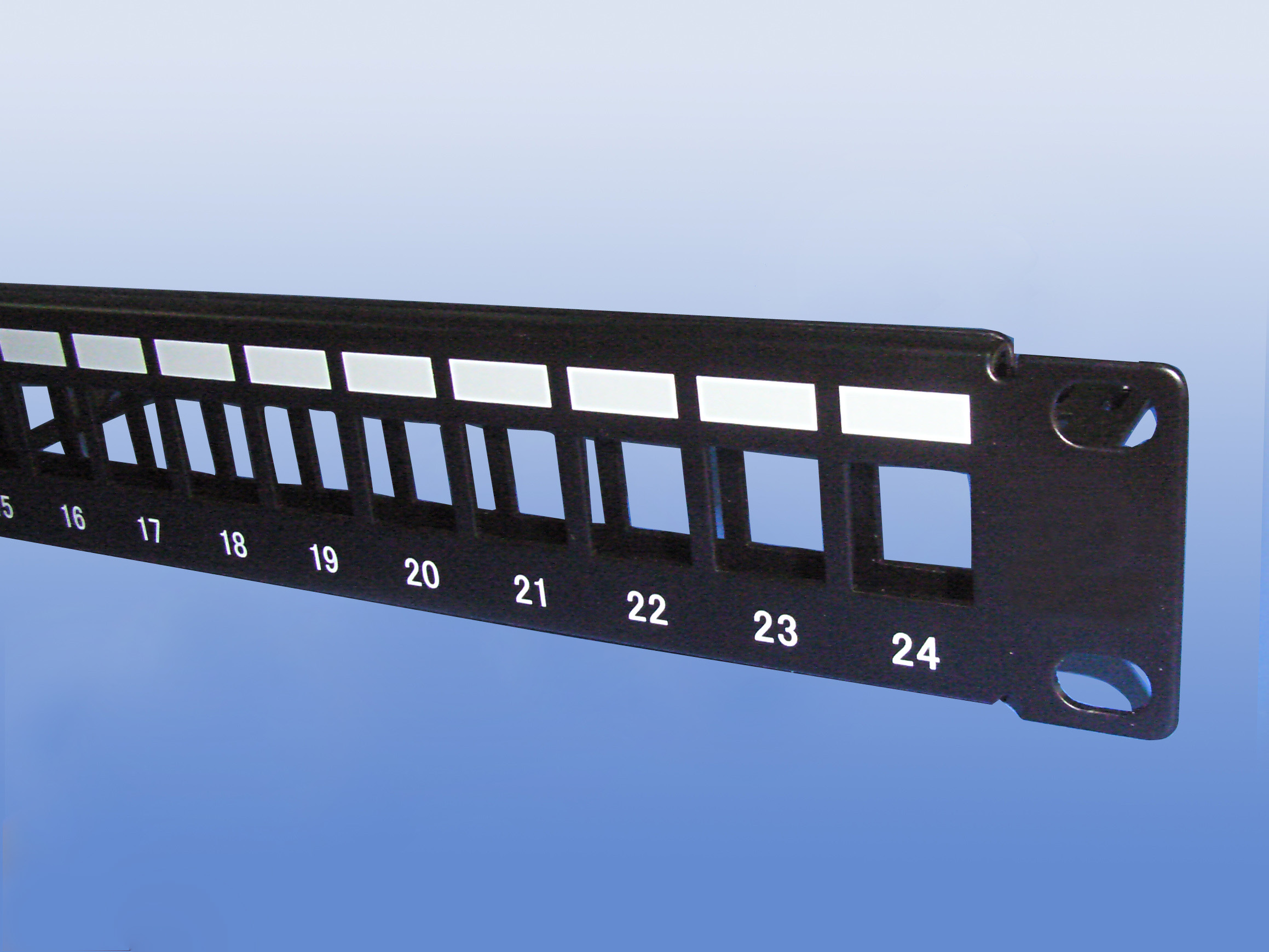

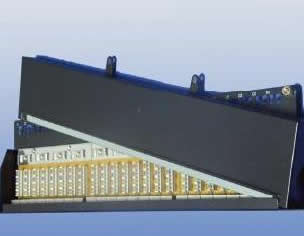

CAT6 Patch Panels, Unshielded & Shielded Version |
|
|
|
|
|
|
|
Product characteristics: |
|
|
|
|
|
|
|
|
|
|
|
Space saving, high-density 19in panel design .
Color coded icon identification tag for ease of installation.
Write-on designation label with clear holder on the front panel for system identification.
All panels are powersum swept frequency tested, Cat 5e up to 155 Mhz, Cat 6 up to 300 Mhz
100% full shield design can improve EMI/RFI performance. They allow flexible grounding for shielded cable for each IDC pin.
Shielded panels incorporate 360 C stainless steel for full EMI (Electro-magnetic Immunity) shielding required by EN 50173.
Rear cover with wire management bar to control the cables bending radius and provide excellent strain relief.
IDC connector with large space on each pair help improve crosstalk performance.
Cat 6 patch panel can be backward compatible with Cat5e or lower class products.
Using tinned platimum for superior conductivity, this special design can improve NEXT performance to a great extent. |
|
|
Product Specifications
|
|
|
|
|
|
|
|
|
|
|
|
|
Being UL approved, significant margin over ANSI/TIA-568-A(TSB-40A); ISO/IEC 11801 standard.
Meet EIA-310-D specifications .
A pair punch sequence enables a pair twist within 1/2"(12.7mm) of termination.
Unshielded and Shielded version for selection.
110 type and Krone type for selection
Color-coded for T568A and T568B wiring schemes.
16, 24, 48 and 96 ports for selection. |
|
|
|
Applications
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1,000 Mbps Gigabit Ethernet (IEEE 802.3Z).
622 Mbps ATM.
155 Mbps ATM.
100 VG-Any LAN (IEEE 802.12).
100 Mbps TP-PMD.
100 Mbps Fast Ethernet (IEEE 802.3u).
100 Mbps CDDI.
10 Mbps Ethernet (IEEE 802.3).
4 Mbps & 16 Mbps Token-Ring (IEEE 802.5).
ISDN. |
|
Physical/ ElectricalSpecifications |
|
|
|
|
|
|
|
|
|
|
|
Insulation Resistance: 500M.
Contact Resistance: 20M.
Current rating: 1.5 Amps
DC Resistance: Max.0.1
Dielectric Withstand Voltage: 1,000VAC RMS @ 60Hz/1 min |
|
Standards |
Meets EIA/TIA 568A & ISO 11801 FCC Sub part 68 & TSB-40A |
|
|
|
|
Ordering information |
|
|
|
|
|
|
|
|
|
|
|
Unshielded CAT5E Patch Panels: |
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Dimension |
Wiring |
AD-PP-16P-C5e-A/B |
Unshielded CAT5E 16 Ports PatchPanel |
1.8"x19" 1U |
T568A/B |
AD-PP-24P-C5e-A/B |
Unshielded CAT5E 24 Ports PatchPanel |
1.8"x19" 1U |
T568A/B |
AD-PP-32P-C5e-A/B |
Unshielded CAT5E 32 Ports PatchPanel |
3.6"x19" 2U |
T568A/B |
AD-PP-48P-C5e-A/B |
Unshielded CAT5E 48 Ports PatchPanel |
3.6"x19" 2U |
T568A/B |
AD-PP-72P-C5e-A/B |
Unshielded CAT5E 72 Ports PatchPanel |
5.4"x19" 3U |
T568A/B |
AD-PP-96P-C5e-A/B |
Unshielded CAT5E 96 Ports PatchPanel |
7.2"x19" 4U |
T568A/B |
|
|
|
|
Unshielded CAT6 Patch Panels: |
|
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Dimension |
Wiring |
AD-PP-16P-C6-A/B |
Unshielded CAT6 16 Ports PatchPanel |
1.8"x19" 1U |
T568A/B |
AD-PP-24P-C6-A/B |
Unshielded CAT6 24 Ports PatchPanel |
1.8"x19" 1U |
T568A/B |
AD-PP-32P-C6-A/B |
Unshielded CAT6 32 Ports PatchPanel |
3.6"x19" 2U |
T568A/B |
AD-PP-48P-C6-A/B |
Unshielded CAT6 48 Ports PatchPanel |
3.6"x19" 2U |
T568A/B |
AD-PP-72P-C6-A/B |
Unshielded CAT6 72 Ports PatchPanel |
5.4"x19" 3U |
T568A/B |
AD-PP-96P-C6-A/B |
Unshielded CAT6 96 Ports PatchPanel |
7.2"x19" 4U |
T568A/B |
|
|
|
|
|
|
Shielded CAT5E Patch Panels: |
|
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Dimension |
Wiring |
AD-PP-16P-C5eS-A/B |
Shielded CAT5E 16 Ports PatchPanel |
1.8"x19" 1U |
T568A/B |
AD-PP-24P-C5eS-A/B |
Shielded CAT5E 24 Ports PatchPanel |
1.8"x19" 1U |
T568A/B |
AD-PP-48P-C5eS-A/B |
Shielded CAT5E 48 Ports PatchPanel |
3.6"x19" 2U |
T568A/B |
|
|
|
|
|
|
Shielded CAT6 Patch Panels |
|
|
|
|
|
|
|
|
|
|
|
|
Part No. |
Description |
Dimension |
Wiring |
AD-PP-16P-C6S-A/B |
Shielded CAT6 16 Ports PatchPanel |
1.8"x19" 1U |
T568A/B |
AD-PP-24P-C6S-A/B |
Shielded CAT6 24 Ports PatchPanel |
1.8"x19" 1U |
T568A/B |
AD-PP-48P-C6S-A/B |
Shielded CAT6 48 Ports PatchPanel |
3.6"x19" 2U |
T568A/B |
|
|
|
|
|
|
Unshielded CAT 5E Mini Patch Panels: |
|
|
|
|
|
|
|
|
|
|
|
Part No . |
Description Dimension |
Dimension |
Wiring |
AD-MP-12P-C5e-A/B |
Unshielded CAT5E 12 Ports PatchPanel |
1.8"x19" 1u |
T568A/B |
AD-MP-12P-C6-A/B |
Unshielded CAT6 12 Ports PatchPanel |
1.8"x19" 1u |
T568A/B |
AD-MP-12R |
Rack for Mini Panel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
