 Product name: Cat5E Keystone Jacks |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
Keywords: Cat5E Keystone Jacks |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |

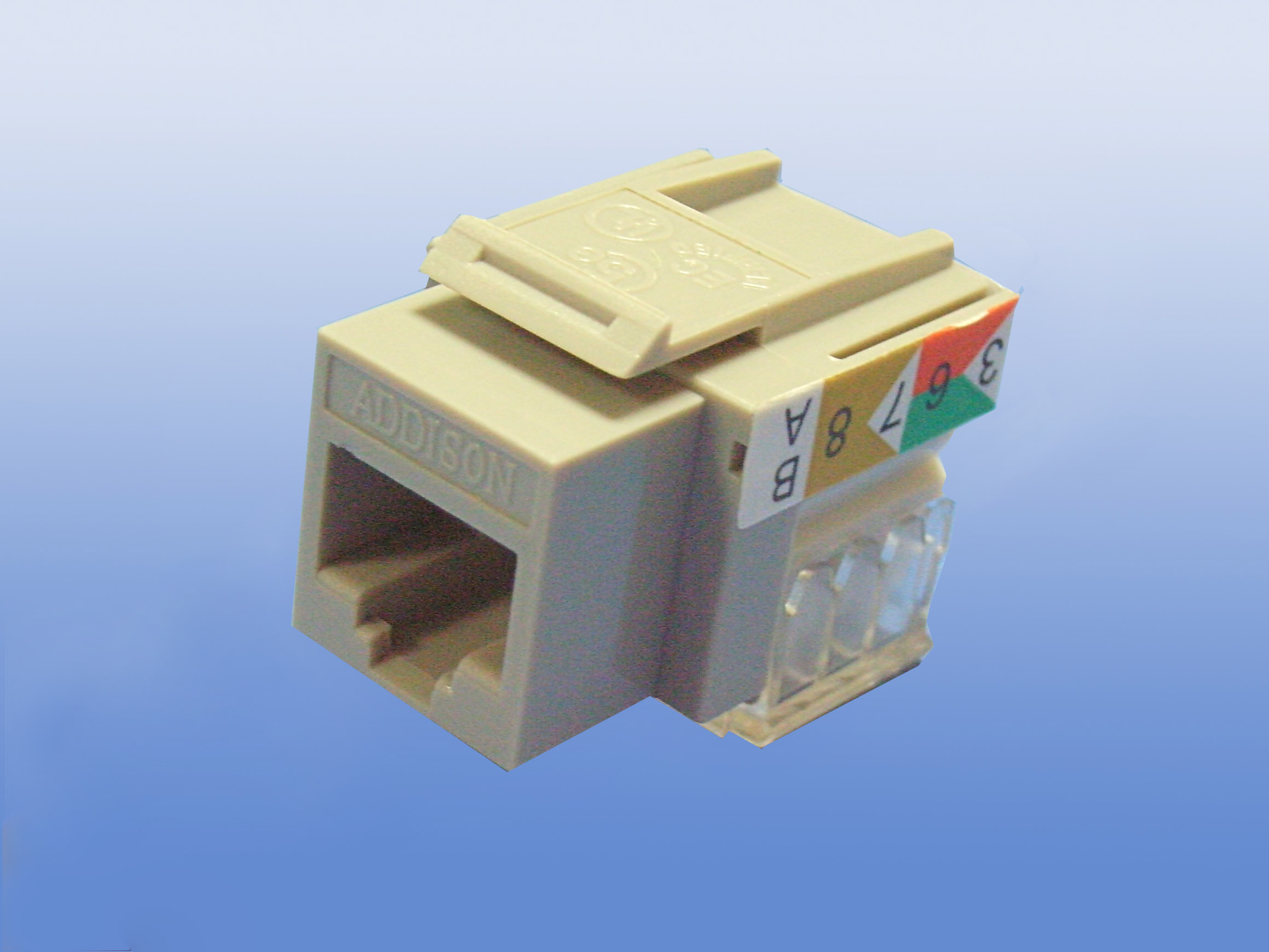

 Product Picture |
|
|
|
| |
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Introduction |
|
|
|
|
|
|
|
Cat5e Jack Unshielded & Shielded Versions |
|
|
|
|
|
|
|
|
Product specification: |
|
|
|
|
|
|
|
|
|
|
|
Significant margin over ANSI/TIA 568-B, ISO/IEC 11801 and EN 50173.
Twists are maintained to within 1/2'' (12.7mm)
Work in standard keystone jack opening(0.58'' X 0.78'' or 14.732mm x 20.066mm).
Unshielded and Shielded versions available for choice.
Accepts 110 punch down tool or Krone punch down tools.
Color coded for 568A and 568B wiring scheme |
|
|
|
|
|
Product
Certification :
|
E223921 |
|
|
|
|
|
|
|
|
|
|
Physics/Electrical Characteristics: |
|
|
|
|
|
|
|
|
|
|
UL-94V high-impact, fire-retardant ABS Material.
Beryllium copper contacts for superior connectivity, with 100u " nickel baseboard furnished.with 50u" gold plating.
Supports 22 -26AWG wire gauge.
Plug retention force: 30 lb. (minimum)
Plug & keys tone jack contact force 100 g.
Insertion life cycle: 1,000 cycles(minimum)/I.D.C 250 cycles(minimum).
Insulation Resistance: 500M  .
Current rating: 1.5 Amps.
DC Resist ance: Max.0.1M  .
Dielectric Withstand Voltage: 1,000VAC RMS @ 60Hz/1 min .
Operating temperature: -10 - -60°C.
Storage temperature: -40 - -70°C . |
|
|
|
|
|
Cat5e jack Pin Assignment: |
|
|
|
|
|
|
|
|
|
|
|
|
EIA/TIA568A |
Pin |
Color code |
EIA/TIA568B |
Pin |
Color code |
#1 |
5
4 |
White/Blue
Blue/White |
#1 |
5
4 |
White/Blue
Blue/White |
#2 |
3
6 |
White/Orange
Orange/White |
#2 |
1
2 |
White/Orange
Orange/White |
#3 |
1
2 |
White/Green
Green/White |
#3 |
3
6 |
White/Green
Green/White |
#4 |
7
8 |
White/Brown
Brown/White |
#4 |
7
8 |
White/Brown
Brown/White |
|
|
|
|
|
Electrical parameter : |
|
|
|
|
|
|
|
|
|
|
|
|
FREQ
(MHZ) |
ATTN
(db/100m) |
NEXT
Minimum Value/Standard Value
(db/100m) |
ELFEXT Minimum Value/Standard Value
(db/100m) |
RETURN LOSS Minimum Value/Standard Value
(db) |
1 |
0.1 |
85.0/65.0 |
80.0/65.0 |
52.0/30.0 |
4 |
0.1 |
75.0/65.0 |
71.0/63.1 |
50.0/30.0 |
8 |
0.1 |
68.0/64.9 |
66.0/57.0 |
46.0/30.0 |
10 |
0.1 |
66.0/63.0 |
64.0/55.1 |
44.0/30.0 |
16 |
0.2 |
62.0/58.9 |
60.0/51.0 |
40.0/30.0 |
20 |
0.2 |
60.0/57.0 |
58.0/49.1 |
38.0/30.0 |
25 |
0.2 |
58.0/55.0 |
56.0/47.1 |
37.0/30.0 |
31.25 |
0.2 |
56.0/53.1 |
54.0/45.2 |
35.0/30.0 |
62.5 |
0.3 |
50.0/47.1 |
48.0/39.2 |
29.0/24.0 |
100 |
0.4 |
47.0/43.0 |
44.0/35.1 |
26.0/20.0 |
|
|
|
|
|
Productc Highlights : |
|
|
|
|
|
|
|
|
|
|
Full seal design ensures reliable termination and stability.
Supplied with color coded dust cover for dust and dampness protection.
IDC contact design eliminates need to strip individual conductors and ensures reliable termination .
With a patented technology, all twists are maintained to within 1/2'', improving the NEXT value to a great extent.
Dust Cap/Retention Caps over termination provid es strain relief.
Rear part of the jack printed with EIA 568B pin assignment to ensure fast termination.
Being component tested, the jack can work in harmony with Cat 5 or lower products.
Provide extra NEXT margin in support of future gigabit applica tion.
Provide fully shielded design to ensure the best screening performance. |
|
|
|
|
|
Ordering information: |
|
|
|
|
|
|
|
|
|
|
Unshielded Jack : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product type |
Product description |
AD-KM-C5e-A/B-90-XX |
CAT5e,8P8C, 90°C, Unshielded T568A/B Wiring |
|
|
|
|
|
|
|
Shielded Jack : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product type |
Product description |
AD-KM-C5EFS-A/B-90 |
CAT5e,8P8C, 90°C, shielded T568A/B Wiring |
|
|
|
|
|
|
|
|
XX is the color code: |
|
|
|
|
|
|
|
|
|
|
|
BK= B lack RD= R ed GN= Gr een YL= Ye llow BL= B lue color
WH= Wh ite OR= O range GY= Grey IV= whit e Ivory |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
