 Product name: Cat6 keystone Jacks |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Keywords: Addison Cat6 keystone Jacks |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
 Product Picture |
|
|
| |
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Introduction |
|
|
|
|
|
|

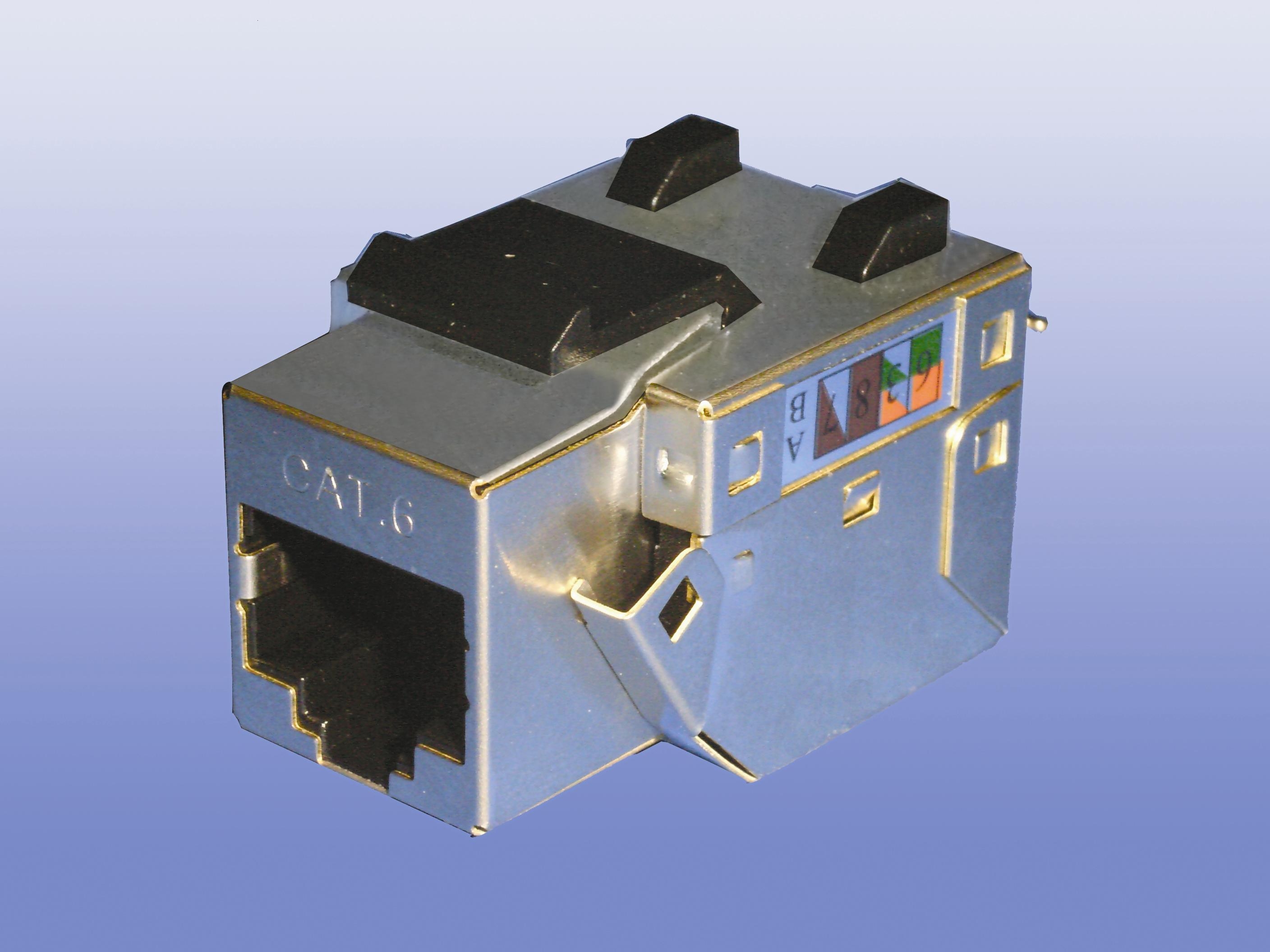

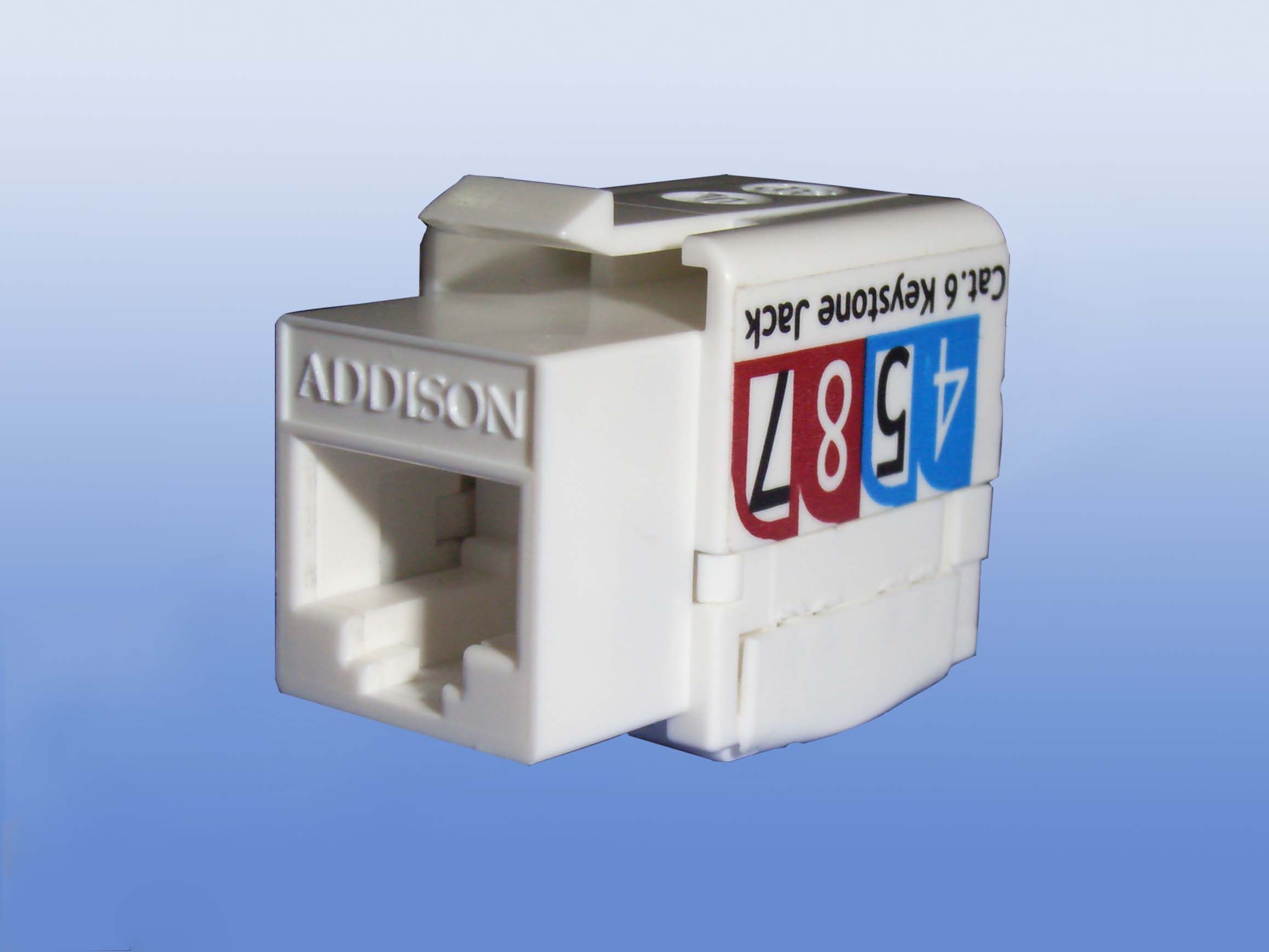

Cat6 Jack Unshielded & Shielded Versions |
|
|
|
|
|
|
|
|
Cat6 Jack specification: |
|
|
|
|
|
|
|
|
Significant margin over ANSI/TIA 568-B, ISO/IEC 11801 and EN 50173.
Supports the 10G ethernet in IEEE 802.3 an draft 2.3 .
Twists are maintained to within 1/2'' (12.7mm)
Work in standard keystone jack opening(0.58'' X 0.78'' or 14.732mm x 20.066mm)
Unshielded and Shielded versions available for choice.
Accepts 110 punch down tool or Krone punch down tools.
Color coded for 568A and 568B wiring scheme.
Swept Frequency tested up to 300 Mhz for Cat 6 jacks and 500 Mhz for Cat6e jacks |
|
|
|
|
|
Product Certification |
E223921 |
|
|
|
|
|
|
|
|
|
Cat6 Jack Physics/Electrical Characteristics : |
|
|
|
|
|
|
|
UL-94V high-impact, fire-retardant ABS Material.
Beryllium copper contacts for superior connectivity, with 100u " nickel baseboard furnished. with 50u" gold plating.
Supports 22 -26AWG wire gage.
Plug retention force: 30 lb. (minimum)
Plug & keystone jack contact force 100 g.
Insertion life cycle: 1,000 cycles(minimum)/I.D.C 250 cycles(minimum).
Insulation Resistance: 500M  .
Current rating: 1.5 Amps.
DC Resistance: Max.0.1M .
Dielectric Withstand Voltage: 1,000VAC RMS @ 60Hz/1 min .
Operating temperature: -10 - -60°C.
Storage temperature: -40 - -70°C . |
|
|
|
|
|
Cat6e Jack Pin Assignment : |
|
|
|
|
|
|
|
|
|
|
|
EIA/TIA568A |
Pin |
Color code |
EIA/TIA568B |
Pin |
Color code |
#1 |
5
4 |
White/Blue
Blue/White |
#1 |
5
4 |
White/Blue
Blue/White |
#2 |
3
6 |
White/Orange
Orange/White |
#2 |
1
2 |
White/Orange
Orange/White |
#3 |
1
2 |
White/Green
Green/White |
#3 |
3
6 |
White/Green
Green/White |
#4 |
7
8 |
White/Brown
Brown/White |
#4 |
7
8 |
White/Brown
Brown/White |
|
|
|
|
|
|
Electrical parameter : |
|
|
|
|
|
|
|
|
|
|
|
CAT6 : |
FREQ
(MHZ ) |
ATTN
(db/100m) |
NEXT Minimum Value/Standard Value
(db/100m) |
ELFEXT Minimum Value/Standard Value
(db/100m) |
RETURN LOSS Minimum Value/Standard Value
(db) |
1 |
0.1 |
85.0/75.0 |
83.0/75.0 |
52.0/30.0 |
4 |
0.1 |
80.0/75.0 |
74.0/71.1 |
53.0/30.0 |
8 |
0.1 |
77.0/75.0 |
69.0/65.0 |
55.0/30.0 |
10 |
0.1 |
76.0/74.0 |
67.0/63.1 |
56.0/30.0 |
16 |
0.1 |
72.0/69.9 |
62.0/59.0 |
57.0/30.0 |
20 |
0.1 |
72.0/68.0 |
61.0/57.0 |
59.0/30.0 |
25 |
0.1 |
57.0/54.0 |
48.0/43.1 |
59.0/30.0 |
31.25 |
0.11 |
56.0/53.1 |
54.0/45.2 |
56.0/30.0 |
62.5 |
0.16 |
50.0/47.1 |
48.0/39.2 |
42.0/28.0 |
100 |
0.20 |
47.0/43.0 |
44.0/35.1 |
33.0/24.0 |
200 |
0.28 |
52.0/48.0 |
42.0/37.1 |
21.0/18.0 |
250 |
0.32 |
47.0/46.0 |
40.0/35.1 |
17.0/16.0 |
|
|
|
|
|
|
|
|
|
|
|
CAT6e : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FREQ
(MHZ) |
ATTN
(db/100m) |
NEXT Minimum Value/Standard Value
(db/100m) |
PSNEXT Minimum Value/Standard Value
(db/100m) |
ELFEXT Minimum Value/Standard Value
(db/100m) |
RETURN LOSS Minimum Value/Standard Value
(db) |
1 |
4 |
72.7 |
70.3 |
63.3 |
19.0 |
4 |
4.2 |
63.0 |
60.5 |
51.2 |
19.0 |
10 |
6.6 |
56.6 |
54.0 |
43.3 |
19.0 |
16 |
8.3 |
53.2 |
50.6 |
39.2 |
18.0 |
20 |
9.3 |
51.6 |
49.0 |
37.2 |
17.5 |
31.25 |
11.7 |
48.4 |
45.7 |
33.4 |
16.5 |
62.5 |
16.9 |
43.4 |
40.6 |
27.3 |
14.0 |
100 |
21.6 |
39.8 |
37.0 |
23.2 |
11.9 |
155 |
27.5 |
36.6 |
33.7 |
19.4 |
10.0 |
200 |
31.6 |
34.7 |
31.8 |
17.1 |
8.9 |
250 |
35.8 |
33.0 |
30.1 |
15.2 |
7.9 |
300 |
39.7 |
31.6 |
28.7 |
13.6 |
7.1 |
500 |
53.3 |
21.9 |
20.3 |
9.2 |
5.9 |
|
|
|
|
|
Product characteristic Highlights : |
|
|
|
|
|
|
|
|
|
Full seal design ensures reliable termination and stability.
Supplied with color coded dust cover for dust and dampness protection.
IDC contact design eliminates need to strip individual conductors and ensures reliable termination .
With a patented t echnology, all twists are maintained to within 1/2'', improving the NEXT value to a great extent.
Dust Cap/Retention Caps over termination provides strain relief.
Rear part of the jack printed with EIA 568B pin assignment to ensure fast termination.
Being component tested, the jack can work in harmony with Cat 5e or lower products.
Provide extra NEXT margin in support of future gigabit application.
Provide fully shielded design to ensure the best screening performance. |
|
|
|
|
Ordering information: |
|
|
|
|
|
|
|
|
|
Unshielded: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product type |
Product description |
AD-KM-C6-A/B-180-XX |
Matrix 6 CAT6,8P8C, 180°C, Unshielded T568A/B Wiring |
|
|
|
|
|
|
Shield: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product type |
Product description |
AD-KM-C6FS-A/B-90 |
Matrix 6 CAT6,8P8C, 90°C, Shielded T568A/B Wiring |
AD-KM-C6EFS-A/B-90 |
Matrix6e 10G CAT6,8P8C, 90°C, Shielded T568A/B Wiring |
|
|
|
|
|
|
XX is the color code: |
|
|
|
|
|
|
|
|
|
|
BK= Black RD= Red GN= Green YL= Yellow BL= Blue color
WH= White OR= Orange GY= Gray IV= Ivory |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
